BARNETT CROSSBOW XPX 420 214# ILLUMINATED PACKAGE 2027

The Barnett XPX™ 420 combines the proven reliability of the Explorer line with Barnett's most advanced hunting technologies. Capable of launching bolts at an incredible speed of 420 Feet Per Second (FPS) and generating a massive 149 ft-lbs of kinetic energy, this compound crossbow delivers devastating downrange energy and an extremely flat flight path.

Despite its impressive power, the XPX 420 is designed for maximum maneuverability in tight quarters. Its wide-stance limb geometry eliminates rotational torque while maintaining a narrow axle-to-axle width of just 6.75 inches when cocked, making it effortless to navigate through dense cover or maneuver inside ground blinds.

Match-grade accuracy is driven by the TriggerTech® trigger group featuring Frictionless Release Technology™, providing a crisp, clean 3 lb release with zero creep. The Ready-to-Hunt package includes a pre-installed Crank Cocking Device (CCD) that drastically reduces cocking effort, an adjustable tactical stock, and a pass-through foregrip with Verti-Grip support for optimal hand positioning and control.

Key Features

Extreme 420 FPS Velocity: Generates 149 ft-lbs of kinetic energy for deep target penetration and flat trajectories over long distances.
Ultra-Compact Profile: Measures only 6.75'' (17 cm) axle-to-axle when cocked for maximum mobility in ground blinds and tree stands.
TriggerTech® 3 lb Trigger: Frictionless roller technology eliminates trigger creep for a crisp, match-grade release.

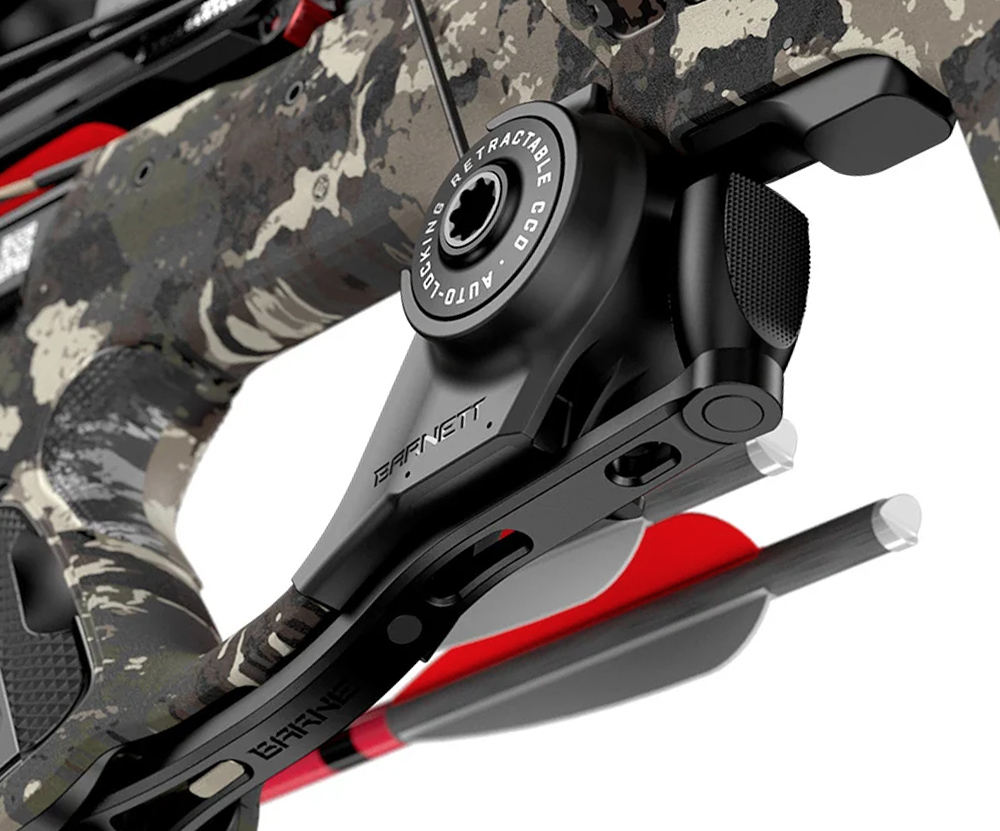

Integrated Crank Cocking Device (CCD): Pre-installed cocking mechanism makes arming the bow effortless.
Adjustable Stock & Verti-Grip Foregrip: Allows customizable length-of-pull and ensures a solid, safe grip during shooting.
Anti-Dry Fire (ADF) & Soft-Lok™ System: Prevents accidental dry fires and holds the arrow securely against the CNC-machined aluminum track.

Technical Specifications

Specification	Details
Manufacturer	Barnett Crossbows
Model	XPX™ 420 (BAR78275)
Speed (FPS)	420 Feet Per Second (~460 km/h)
Kinetic Energy	149 ft-lbs
Draw Weight	205 – 214 lbs
Power Stroke	13.25'' / 16'' (depending on setup)
Axle-to-Axle Width	6.75'' (~17 cm) Cocked / 11'' (~28 cm) Uncocked
Overall Length	30 Inches (~76.2 cm with foot stirrup folded)
Bare Bow Weight	~6.3 lbs (2.85 kg)
Optics Included	4x36mm MR Illuminated Multi-Reticle Scope
Trigger Mechanism	TriggerTech Frictionless Release Technology (3 lbs)
Cocking Mechanism	Pre-installed Crank Cocking Device (CCD)
Arrow Compatibility	Standard 20'' carbon arrows (e.g., Barnett Headhunter™ 20'')

Package Contents (Ready-to-Hunt Package)

1× Barnett XPX™ 420 Compound Crossbow
1× 4x36mm MR Illuminated Multi-Reticle Scope
1× Pre-installed Crank Cocking Device (CCD)
2× 20'' Barnett Headhunter™ Carbon Arrows
1× 3-Arrow Quick-Detach Side-Mount Quiver
1× Rail & String Lubricating Wax

Compatibility & Recommended Accessories

Compatible Arrows: Requires standard-diameter (.300'' ID) 20'' carbon arrows with Moon Nocks, such as the Barnett Headhunter™ 20'' series. Not compatible with .204'' micro-diameter (HyperFlite™) arrows.
